FR3C

FAIRINO-FR3MT

FR3MT is a new generation of 6-axis collaborative robots based on human-robot collaboration technology. It can be easily and flexibly mounted on all kinds of mobile devices or desktop application scenarios, which makes it easier for users to break through the space limitation and enter into more brand-new fields
  • Payload
    3kg
  • Reach
    622mm
  • Repeatability
    ±0.05mm
Request Quote
  • ROBOT ARM
  • SAFTY BOX
  • TEACH PENDANT
specification 1 Payload 3kg(Instantaneous 5kg)
Reach 622mm
Degrees of freedom 6 rotating joints
HMI 10.1 inch teach pendant or mobile terminal Web APP
Movement Repeatability ±0.05mm
Pose repeatability oer ISO 9283 ±0.05mm
Axis movement Working range Maximum speed
Base ±175° ±150°/s
Shoulder +85°/﹣265° ±150°/s
Wrist1 +85°/﹣265° ±150°/s
Wrist2 350° ±180°/s
Wrist3 ±175° ±180°/s
Typical TCP speed 1m/s
Features IP classification IP54(IP65 Optional)
Noise ＜65db
Robot mounting Any orientation
I/O Ports digital input (DI) 2 digital output (DO) 2 analog input(AI) 1 analog ouput(AO) 1
Tool I/O power supply 24V/1.5A
Physical Footprint 125mm
Weight ≈10kg(Weight without wire)
Operating temperature -20—60℃
Operating humidity 90%RH(non-condensing)
Materials Aluminium、Steel
Expand More Packup More
Features IP classification IP54
Button function Manual/Automatic, Drag & Drop, Point Recording, Match or Not with Pushbutton Box, Start/Stop, Shutdown
Communication TCP/IP
Network transfer rate 100M
Power over ethernet standard POE
Physical L*W*H 130*60*66mm(No protrusions)
Weight 490g(wire weight)
Materials ABS
Cable length 5m
Number of keys ≥200,000times
Expand More Packup More
Features IP classification IP54
Operating humidity 90%RH(non-condensing)
Display resolution 1280*800 pixels
Physical L*W*H 268*210*88mm
Weight 10kg(wire weight)
Materials ABS、PP
Cable length 5m
Expand More Packup More

Product Feature

  • 01
    Excellent Performance
    Efficiency First
    Employing an advanced bus architecture, full closed-loop joint torque feedback, graphical programming, zero-force teaching, silky drag, strong real-time and high stability, comprehensively improving the production performance in various scenarios and effectively enhancing the production efficiency.
  • 02
    Ultimate Safety
    Comprehensive Protection
    All core components are self-developed and self-produced, realizing human-machine collaboration, 3D spherical space working range, shared workspace, modular design, full closed-loop joint torque feedback, ensuring the safety of human-machine collaboration.
  • 03
    Flexible Deployment
    Zero Usage Barrier
    Graphical programming, zero-force teaching, silky drag and drop, strong real-time, high stability, can be installed anywhere on the production line, easy to change the operation and save space.
  • 04
    High-Efficiency Protection
    Stability and Reliability
    IP65 protection level certification, perfectly adapted to various types of application environments, more stable and reliable.
  • 05
    Complete Ecosystem
    Full Empowerment
    Development of open platform and real-time control system, set of comprehensive upgrade flexibility, security, usability, flexibility as a whole, support for secondary development of ROS, support for a variety of communication protocols, comprehensively empowered the application of various industries

Customize Your Intelligent Solutions

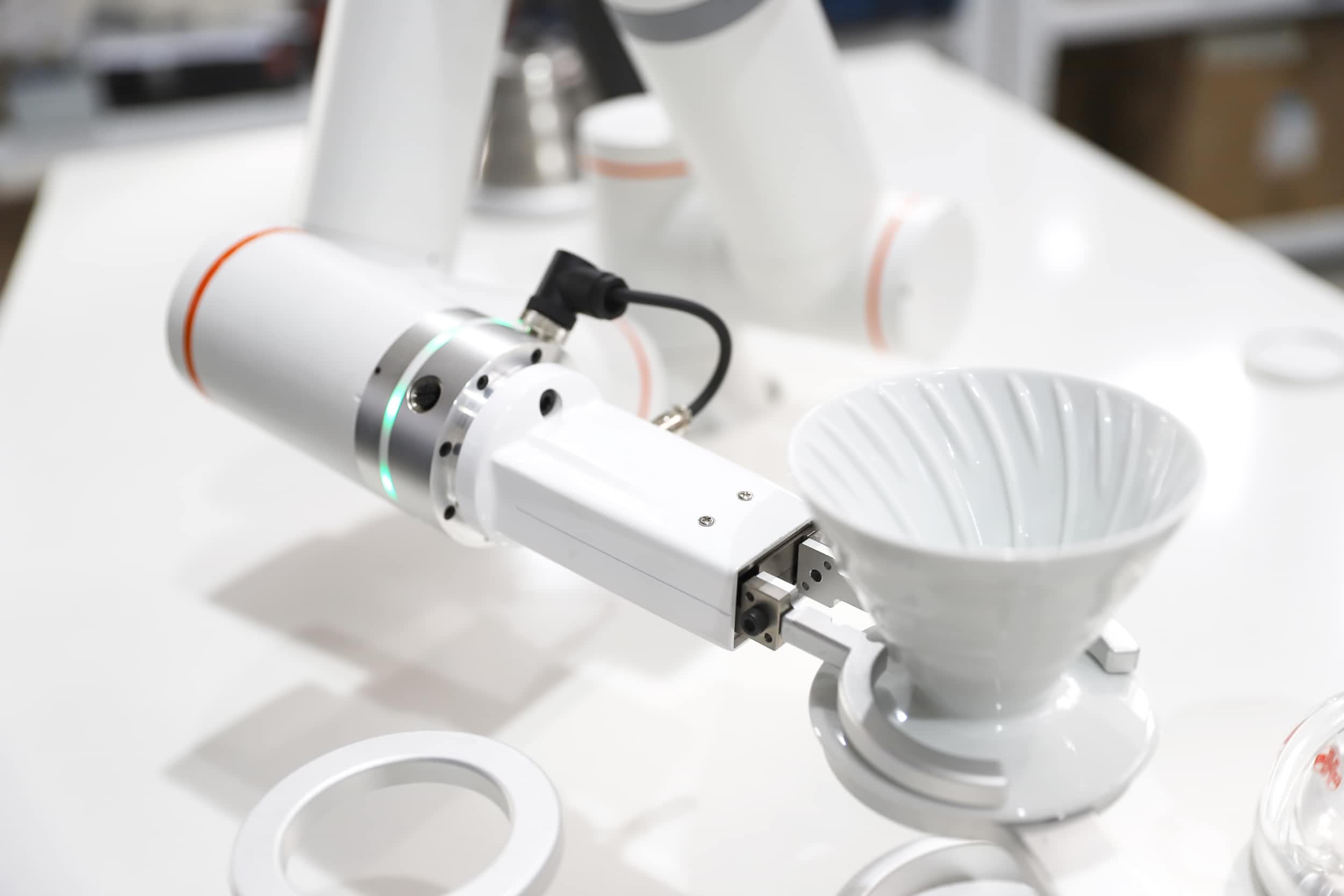

  • Coffee Robot
  • Ice-cream Robot

Customize Your
Intelligent Solutions

FAIRINO provide in-depth intelligent solutions for collaborative robots in various industries to meet the specific needs of our customers.
