MINIBOX

Higher performance Stronger connectivity Greater flexibility
Explore More

Product Feature

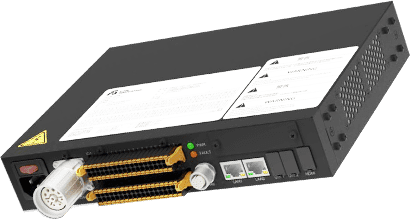

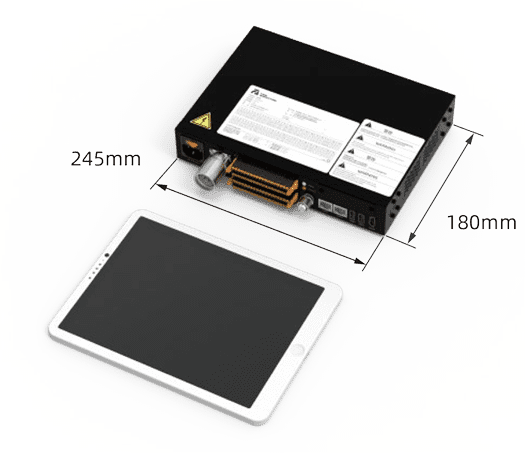

Mini Control Box
Simple and Efficient

Adapted to various cobot systems of FAIRINO and seamlessly integrated into the FR+ software and hardware platform.

Specifications

DC MINIi Controller 2kw DC Controller 5kw AC MINIi Controller 2kw AC Controller 5kw AC Controller 6kw
Features IP Classification IP54 IP54 IP54 IP54 IP54
Operating Temperature 0-45℃ 0-45℃ 0-45℃ 0-45℃ 0-45℃
Operating Humidity 90%RH (non-condensing) 90%RH (non-condensing) 90%RH (non-condensing) 90%RH (non-condensing) 90%RH (non-condensing)
I/O Ports (DI) 16 (DO) 16 (AI) 2 (AO) 2 High speed pulse input 2 (DI) 16 (DO) 16 (AI) 2 (AO) 2 High speed pulse input 2 (DI) 16 (DO) 16 (AI) 2 (AO) 2 High speed pulse input 2 (DI) 16 (DO) 16 (AI) 2 (AO) 2 High speed pulse input 2 (DI) 16 (DO) 16 (AI) 2 (AO) 2 High speed pulse input 2
I/O power supply 24V / 1.5A 24V / 1.5A 24V / 1.5A 24V / 1.5A 24V / 1.5A
Standard communcation I/O、TCP/IP、Modbus_TCP/RTU I/O、TCP/IP、Modbus_TCP/RTU I/O、TCP/IP、Modbus_TCP/RTU I/O、TCP/IP、Modbus_TCP/RTU I/O、TCP/IP、Modbus_TCP/RTU
Optional communication CC-Link、Profinet、Ethernet/IP、EtherCAT CC-Link、Profinet、Ethernet/IP、EtherCAT CC-Link、Profinet、Ethernet/IP、EtherCAT CC-Link、Profinet、Ethernet/IP、EtherCAT CC-Link、Profinet、Ethernet/IP、EtherCAT
Software development kit C#/C++/Python/ROS/ROS2 C#/C++/Python/ROS/ROS2 C#/C++/Python/ROS/ROS2 C#/C++/Python/ROS/ROS2 C#/C++/Python/ROS/ROS2
Physical L*W*H 245*180*44.5 mm(No protrusions) 245*180*89 mm(No protrusions) 245*183*44.5mm(No protrusions) 245*183*89mm(No protrusions) 320*183*100mm(No protrusions)
Weight 2.1Kg (Cable weight include) 2.957Kg (Cable weight include) 2.5Kg (Cable weight include) 3.6Kg (Cable weight include) 6.5Kg (Cable weight include)
Materials Galvanized sheet Galvanized sheet Galvanized sheet Galvanized sheet Galvanized sheet
Power supply 30-60VDC 30-60VDC 30-60VDC 30-60VDC 30-60VDC

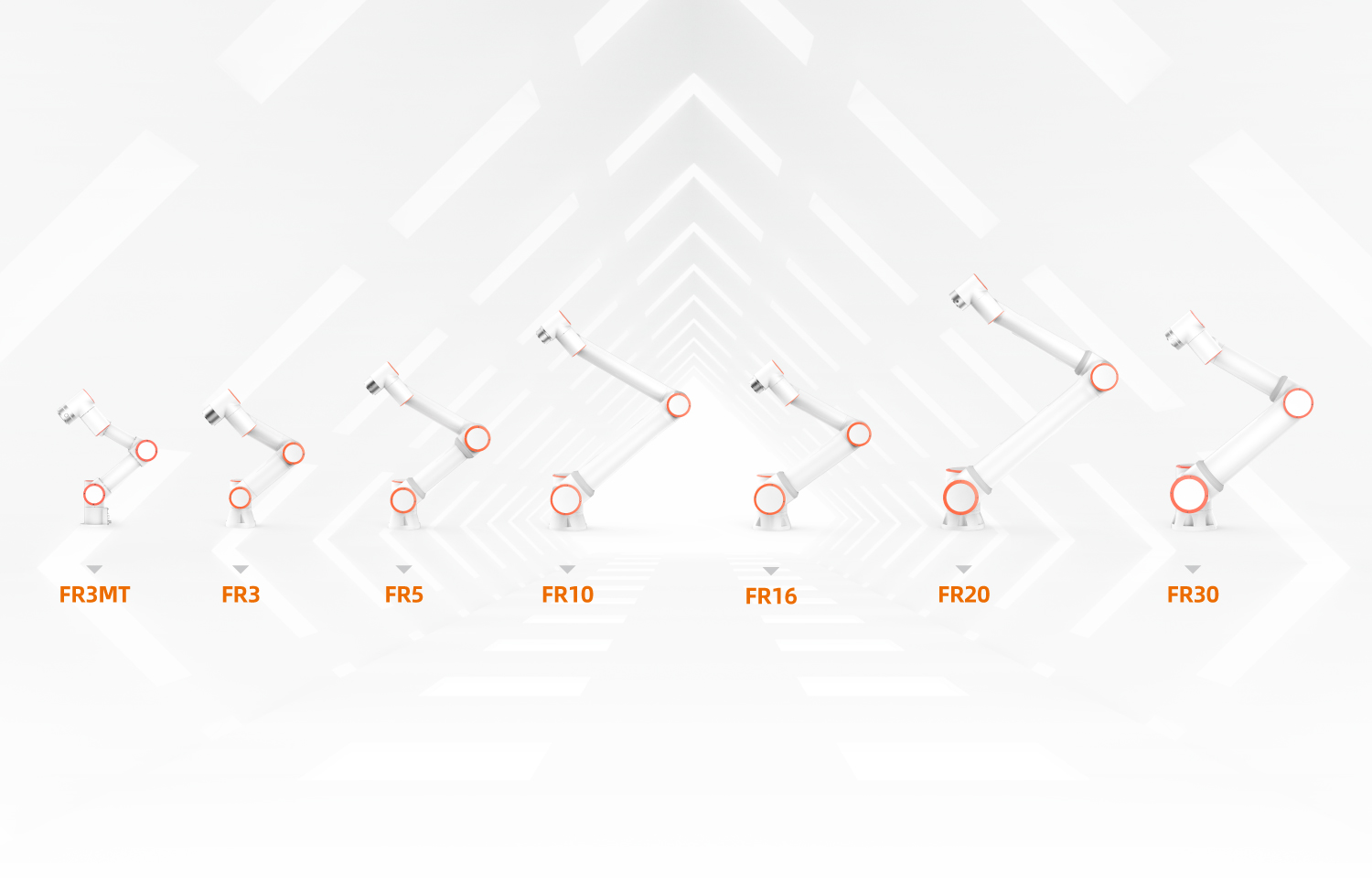

Application Robot FR3、FR5、FR10、FR16 FR20/FR30 FR3、FR5、FR10、FR16 FR20/FR30 FR20/FR30
Expand More Packup More
Future-proof

Designed For High Performance And Availability

The integrated mini control box is equipped with necessary hardware
resources and rich interfaces, which can adapt quickly to unknown tasks and standards in the future.
01
Ready For The Future
Seamless integration into OT, IT and cloud environments Ethernet and digital IO interfaces to support various cloud systems
02
Compatibility
Perfectly adapt to a variety of collaborative robot systems and seamlessly integrate into the FR+hardware and software platform
03
TCO
Comply with common standards in the industry Provide Chinese and English and other multilingual versions
